North American B-25B Mitchell

The B-25 medium bomber was one of America's most famous airplanes of World War II. It was the type used by Gen. Jimmy Doolittle for the Tokyo Raid on April 18, 1942.

Subsequently, B-25s saw duty in every combat area being flown by the Dutch, British, Chinese, Russians and Australians in addition to U.S. forces. Although the airplane was originally intended for level bombing from medium altitudes, it was used extensively in the Pacific Theater for bombing Japanese airfields and beach emplacements from treetop level, and for strafing and skip bombing enemy shipping.

Built by North American Aviation, the B-25 first flew on Aug. 19, 1940, and the U.S. Army Air Corps accepted the first five B-25s in February 1941. By the end of the war, North American Aviation had built a total of 9,816 B-25s at its California and Kansas plants.

During its long career, the B-25 experienced a number of modifications. The first major change occurred with the G model that included a 75mm cannon and two fixed .50-cal. guns in the nose. The H model was the first to add additional forward firing .50-cal. guns in cheek blisters. In the J version, the most numerous variant, the aircraft returned to its initial arrangement as a level bomber, reverting to a transparent nose that included one flexible and two fixed .50-cal. guns.

Driven by requirements in the Pacific, however, field-modified Js and finally production versions once again featured a solid nose that housed eight fixed .50-cal. guns for low-level attack. In this configuration, the J model could devastate vehicles and shipping with up to 14 forward firing heavy machine guns.

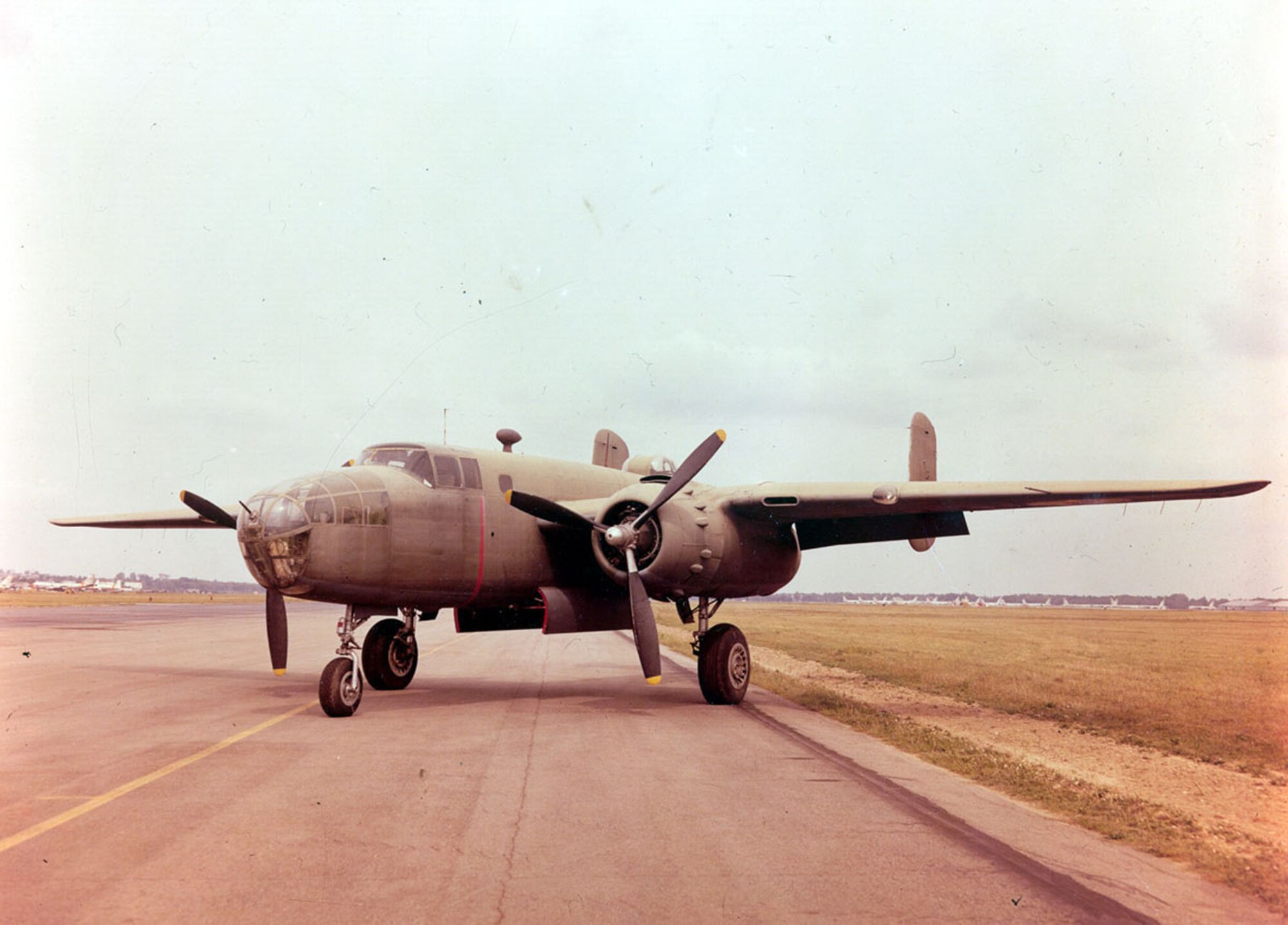

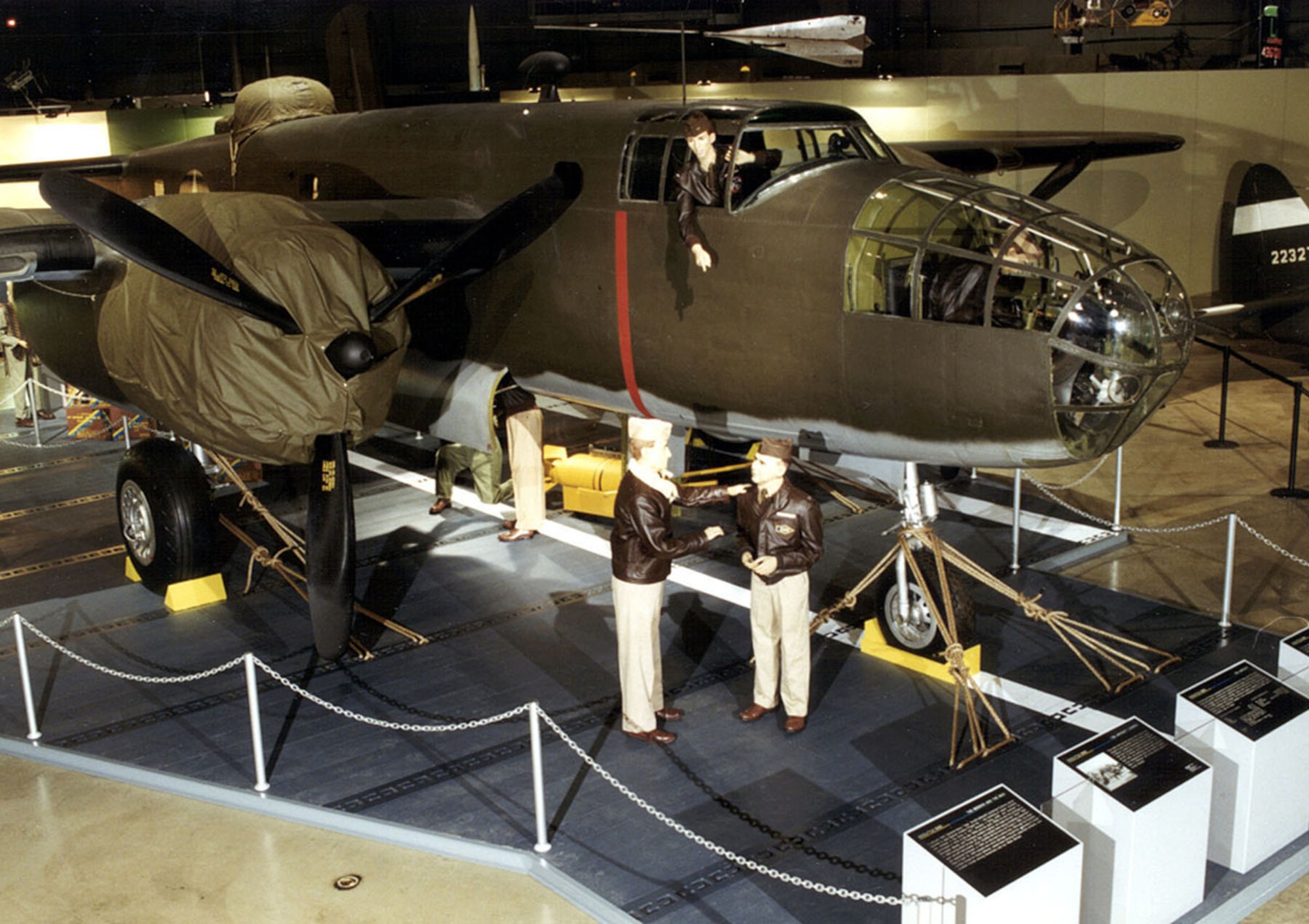

The airplane on display, actually a RB-25D (S/N 43-3374), was removed from storage at Tucson, Ariz., and rebuilt by North American Aviation at Inglewood, Calif., to the configuration of the lead B-25B flown by Lt. Col. Doolittle on the Tokyo Raid. It was then flown to the museum, arriving in April 1958.

TECHNICAL NOTES:
Armament: Six .50-cal. machine guns; 3,000 lbs. of bombs
Engine: Two Wright R-2600s of 1,700 hp each
Maximum speed: 328 mph
Cruising speed: 233 mph
Range: 2,500 miles (with auxiliary tanks)
Ceiling: 21,200 ft.
Span: 67 ft. 6 in.
Length: 53 ft.
Height: 16 ft. 9 in.
Weight: 29,300 lbs. maximum
Cost: $109,670 (1943)




Click here to return to the World War II Gallery.





Find Out More
Line
Related Fact Sheets
Doolittle Raid
Wright R-2600-13 Engine
Line
Cockpit360 Images

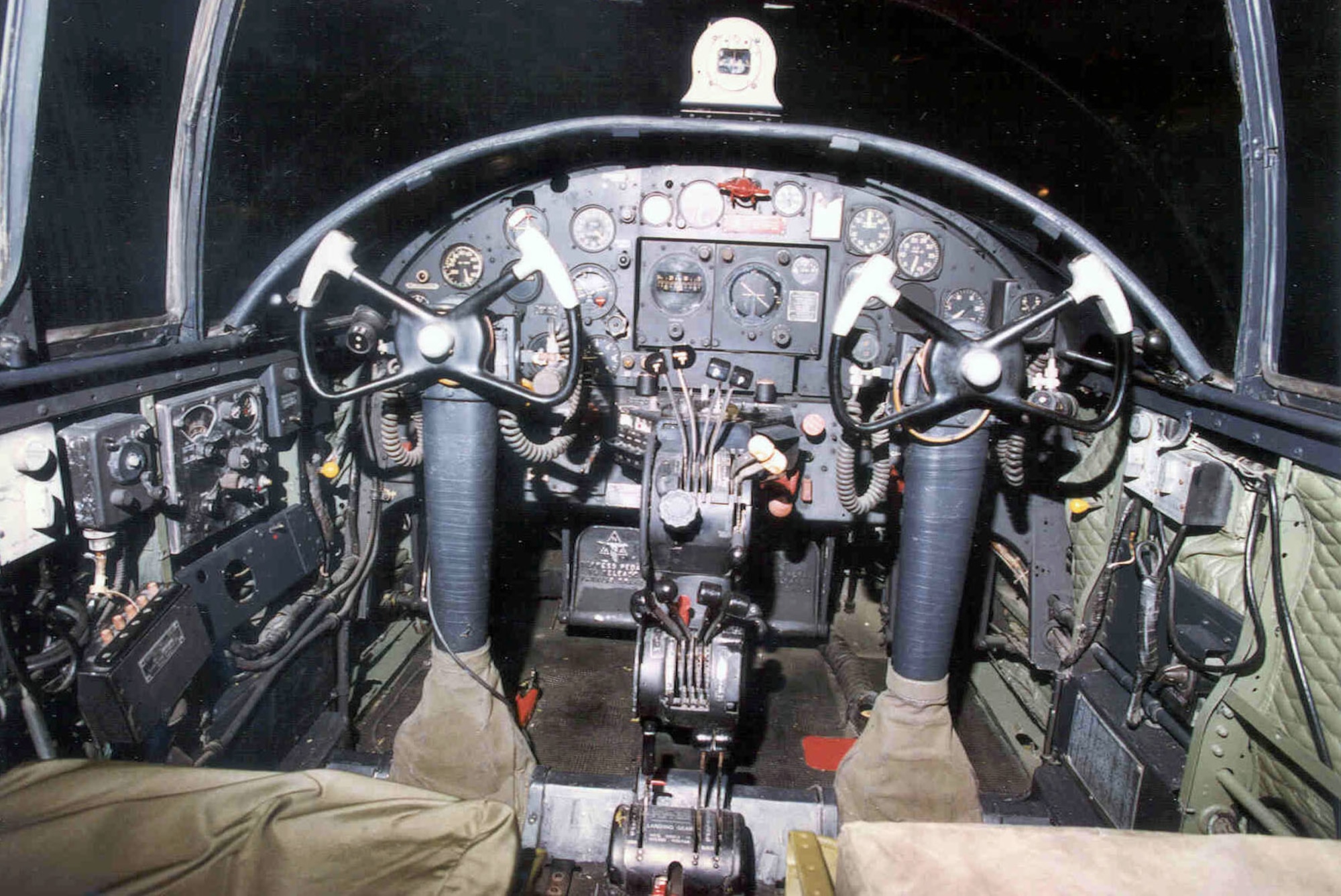

View the B-25B Pilot Station
